Description

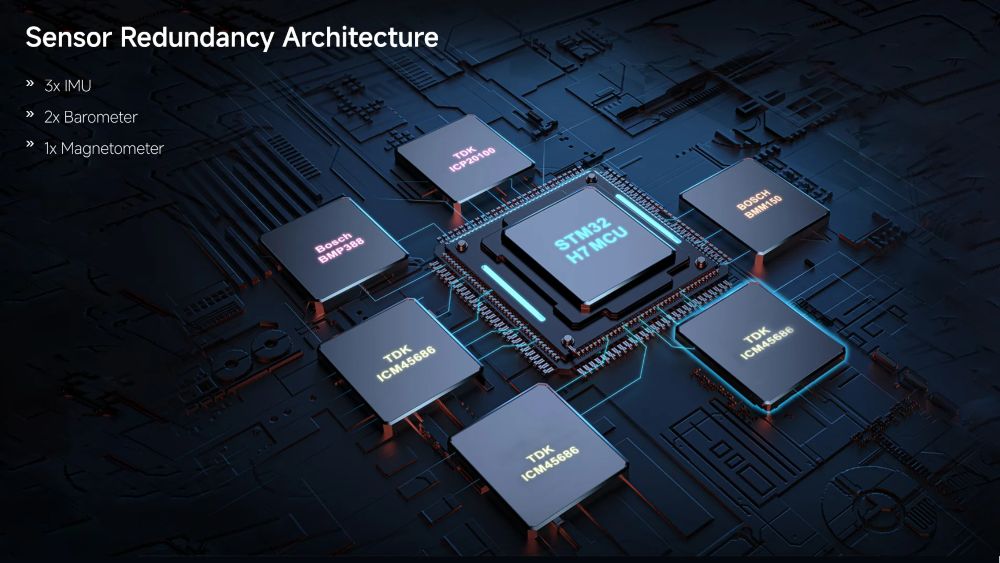

- Redundancy: 3x ICM-45686 IMU sensors (±32g) with BalancedGyro™ technology & 2x Barometer sensors

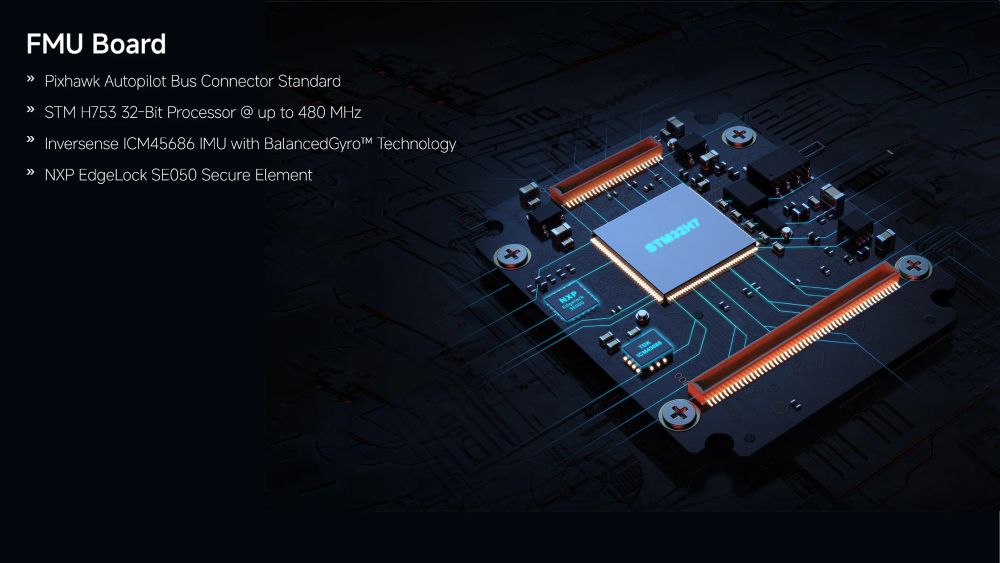

- High-performance STM32H753 Processor with clock speed up to 480 MHz

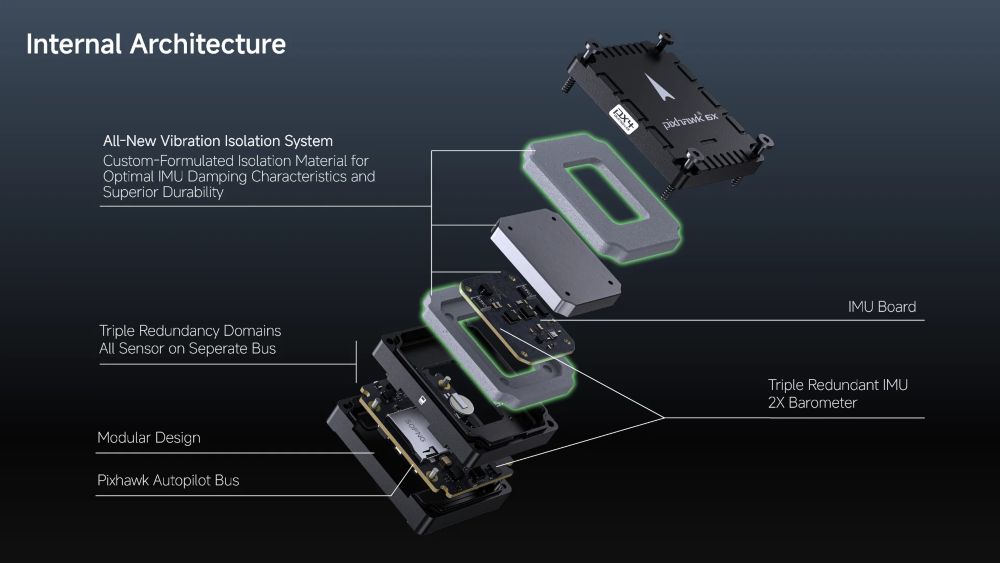

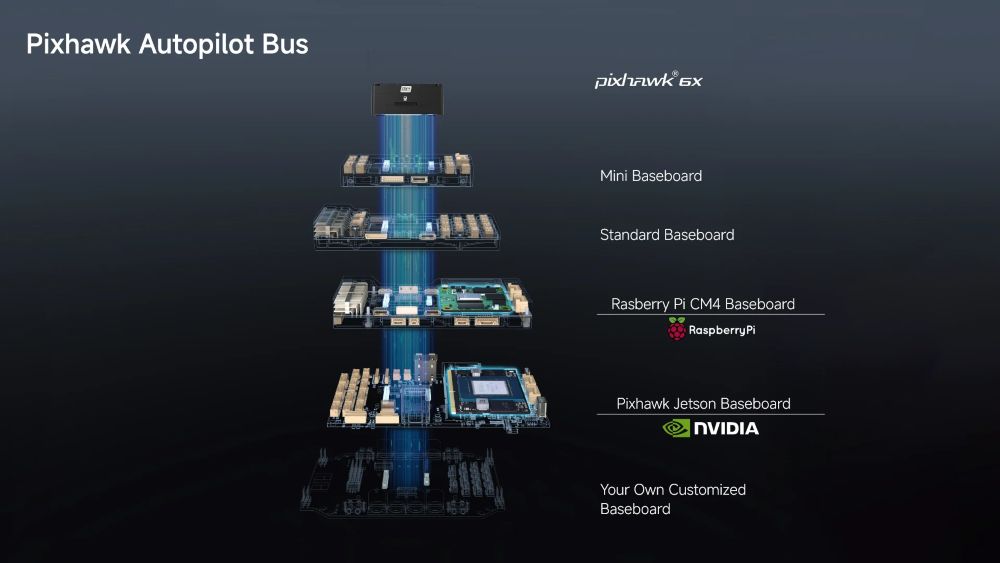

- Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk® Autopilot Bus connector.
- Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control
- All New advanced durable vibration isolation material with resonance frequency in the higher spectrum
- Ethernet interface for high-speed mission computer integration

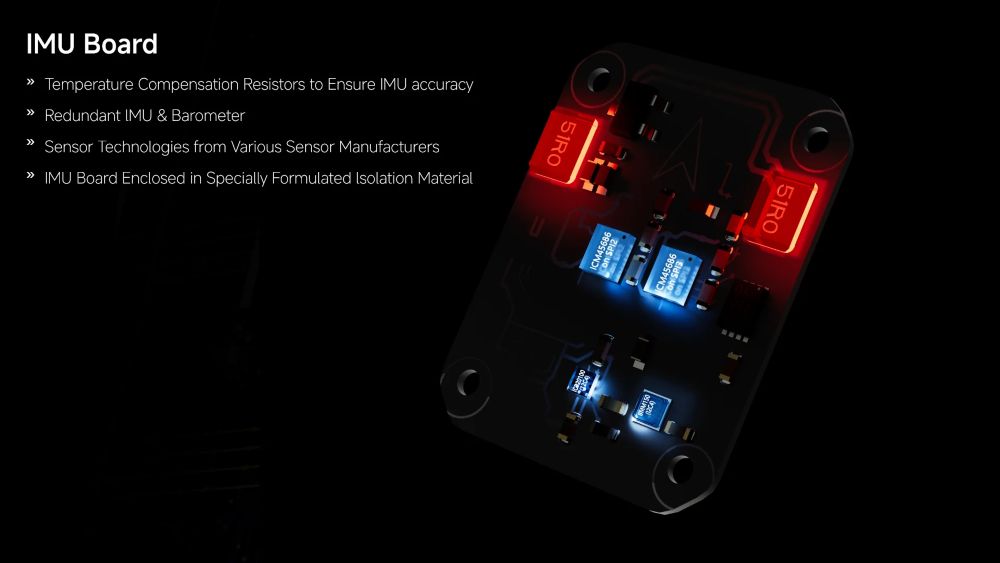

- Temperature-controlled IMU board, allowing optimum working temperature of IMUs
